| Herkunftsort: | Shenzhen, China |
|---|---|
| Markenname: | RAYMO |
| Zertifizierung: | SGS, RoHS2.0, ISO:9001-2015, CE, REACH |
| Modellnummer: | ERA.00.250.CLL |
| Min Bestellmenge: | 5-teilig/Stücke |
| Preis: | negotiable |
| Verpackung Informationen: | Plastiktasche u. Karton |
| Lieferzeit: | 5-7wds |
| Zahlungsbedingungen: | Western Union, L/C, D/A, D/P, T/T |
| Versorgungsmaterial-Fähigkeit: | Woche 5000Pieces/ |
| Art: | ÄRA-PLATTEN-SOCKEL | Gehäusegröße: | 00S, 0S, 1S, 2S |
|---|---|---|---|
| Kontakte: | KOAXIALpin, 50ohm | Geschlecht: | Buchsenkontakt |
| Isolator: | PPS, FLÜCHTIGER BLICK ist verfügbar | IP-Klassifizierung: | IP50 |
| Hervorheben: | PWB tritt mit Verbindungsstück in Verbindung,Kabelellbogenverbindungsstück |
||

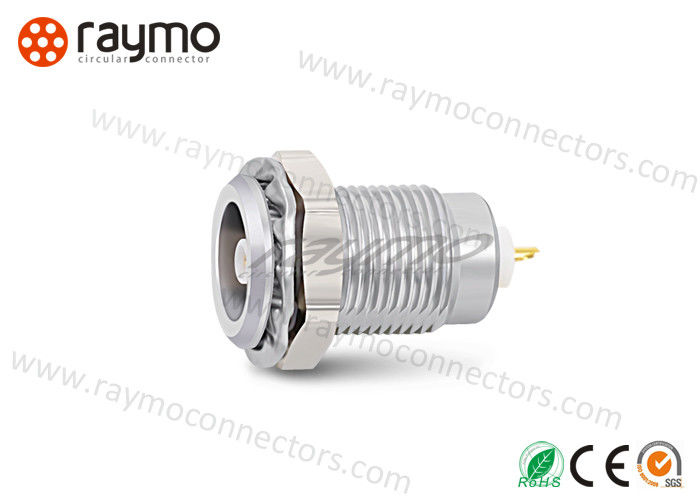

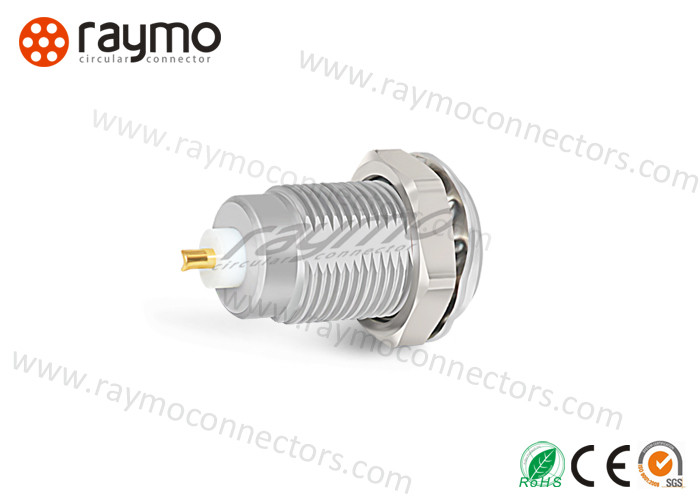

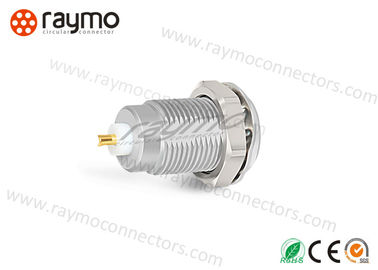

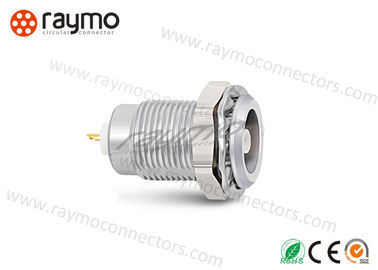

ERA.00.250.CLL RAYMO 00 Series Mini Female Socket 00 Coaxial Femlae Connector
00S 50OHM Coaxial connector
Straight PCB, solder and elbow PCB contacts are available too
| RAYMO PART NO | LEMO PART NO |
| RM-ERA-00S-250-KS | ERA.00.250.CLL |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | |||||
| 00S | 1(coaxial) | |||||
| 0S | 1(coaxial) | 2 | 3 | 4 | ||
| 1S | 1(coaxial) | 2 | 3 | 4 | 5 | 6 |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | 5000 mating cycles |
